Revere Industrial 4200mm 5+0

Part of the Revere Industrial Range | External Bi-Fold Doors

Aperture width: 4200mm (5+0)
Door configuration: 5+0
Outer Frame Size: 4190 x 2090mm (w x h)
Brickwork Opening: 4200 x 2100mm (w x h)
Product Code: 990420050
  • Door FinishBlack
  • Door Leaf Thickness70mm
  • Door Set ConstructionAluminium
  • Door Set U-Value1.5 U-Value


Save £488.2


Price includes VAT and delivery!

Made to order

Delivery in 4 - 5 weeks


Our Revere Industrial bifolds combine the iconic feel of Crittall style steel doors with the attainability of aluminium. Black powder coated aluminium framing makes for a lightweight and more cost effective alternative to steel, while glazing bars inside the glass units help complete the sleek industrial design.

Many Crittall style bifolds have glazing bars that fix on top of the glass, collecting dirt and potentially coming loose over time. Revere Industrial bifolds have the glazing bars within the double glazed units to make the doors easy to clean and to keep the bars fixed for the life of the set.

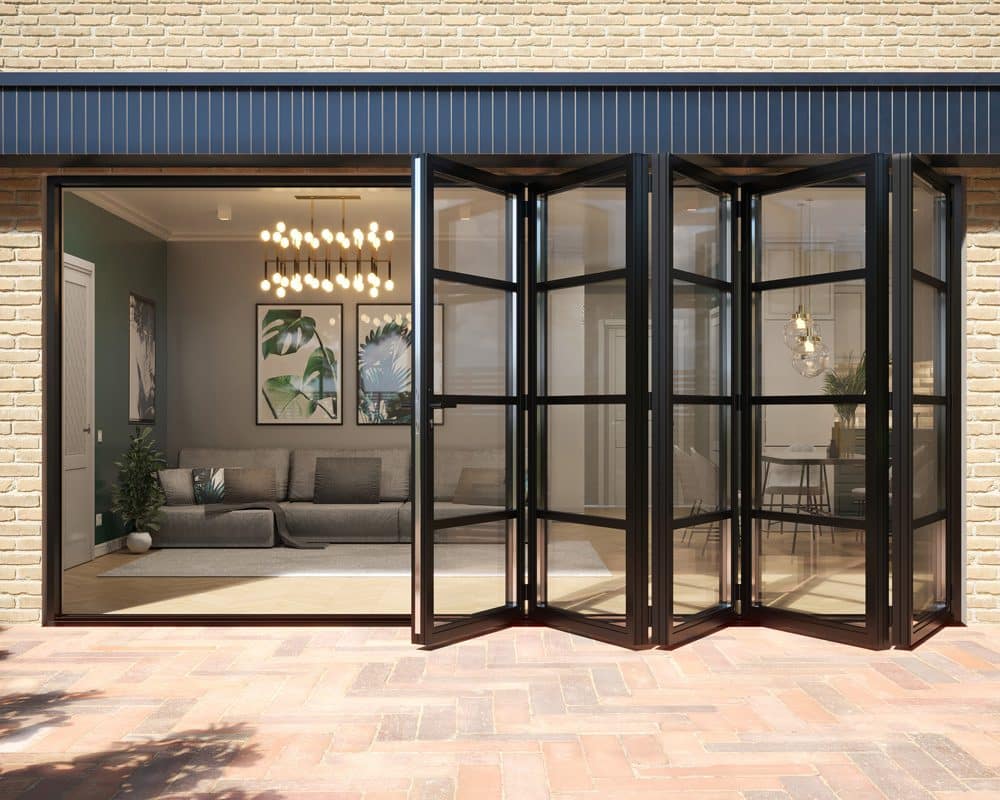

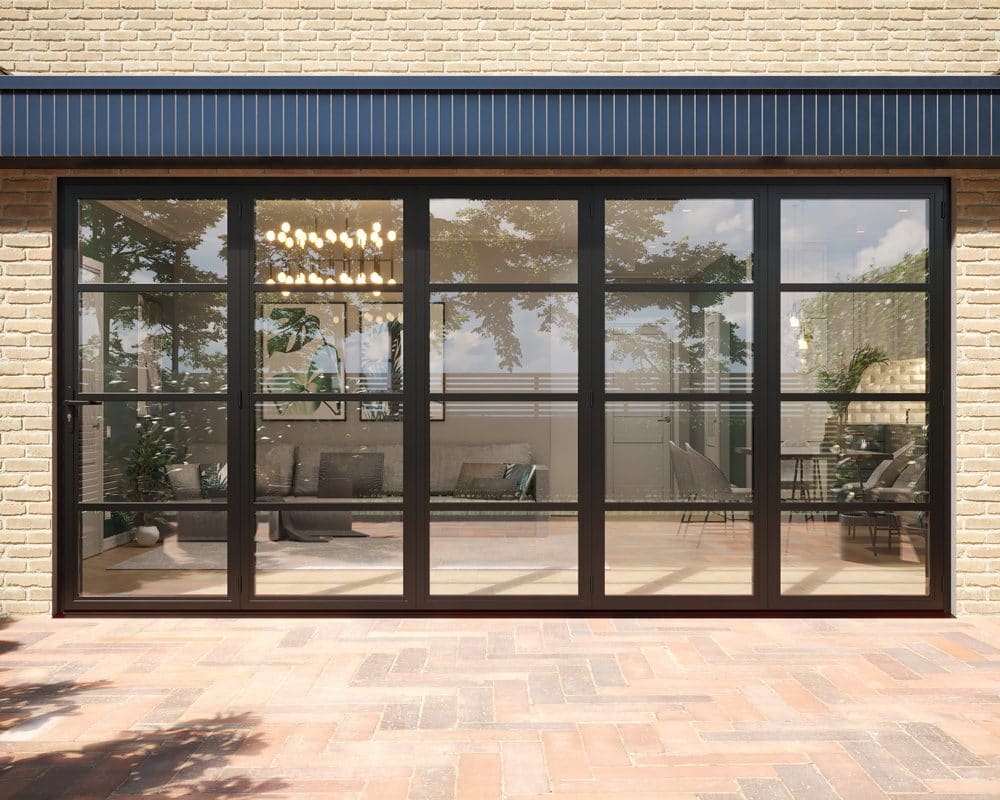

This 4.2m set is made up of 5 doors. Your order confirmation email will contain a link to configure the final details for your doors, including opening direction and sill / threshold options.

Please note the glazing for this set is supplied unfitted to allow easy installation of the framework. This is then fitted during the assembly process.

If being installed within 2 miles of salt water, this set will require a marine grade coating. If this applies to your property, please contact us for a quote.

At least two able-bodied people must be available on site to assist the driver at the point of delivery in order to safely offload the product.

Technical details

Aluminium with Thermal Break
Black – RAL 9005
Aluminium Profiles
Smarts Visofold 1000
28mm Toughened Low E Double Glazed Units with 18mm Integrated Glazing Bars
Centre Pane U-Value
Overall U-Value
Door Thickness

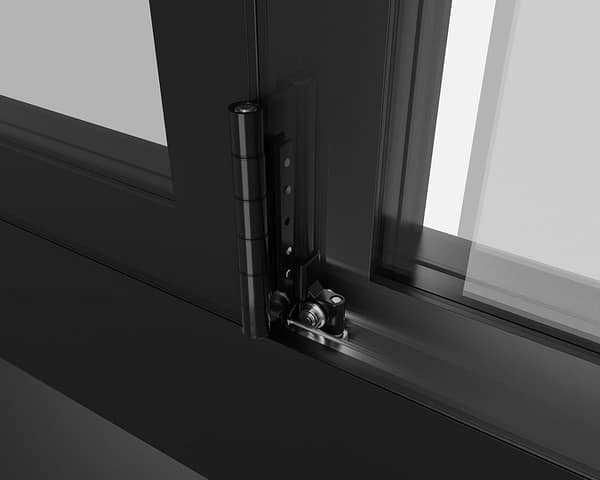

High security bottom-hung concealed carriers
Security Features

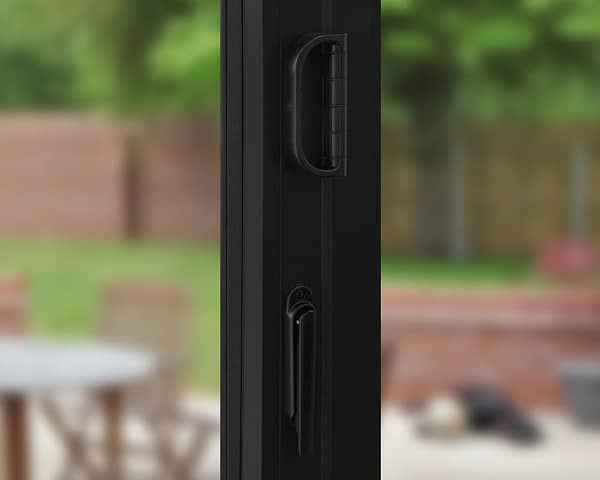

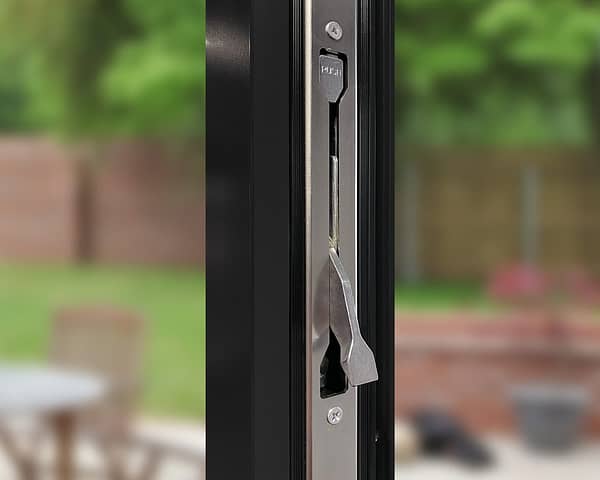

High security hardware and multi-point locking system as standard
This product is fully compliant with British building regulations, including Part J and Part L
10 years against manufacturing, subject to correct installation
Daily Access Door
Opening Direction
Left or Right
Supplied As
Kit Form
Hanging Type
Bottom Hung
