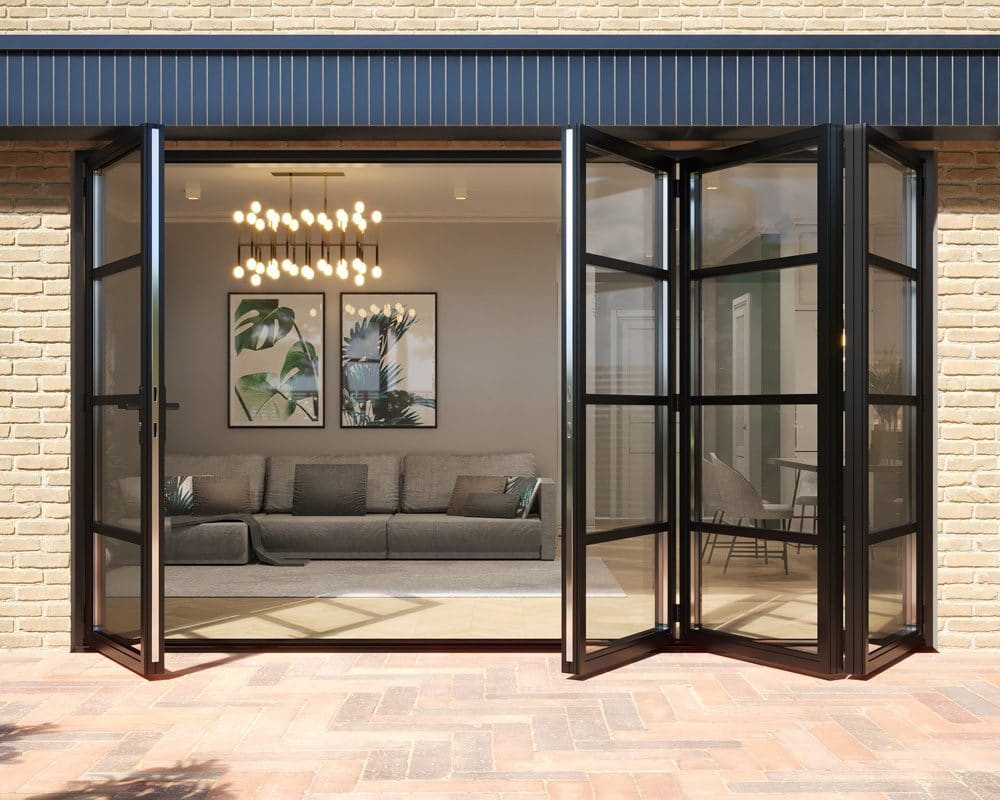

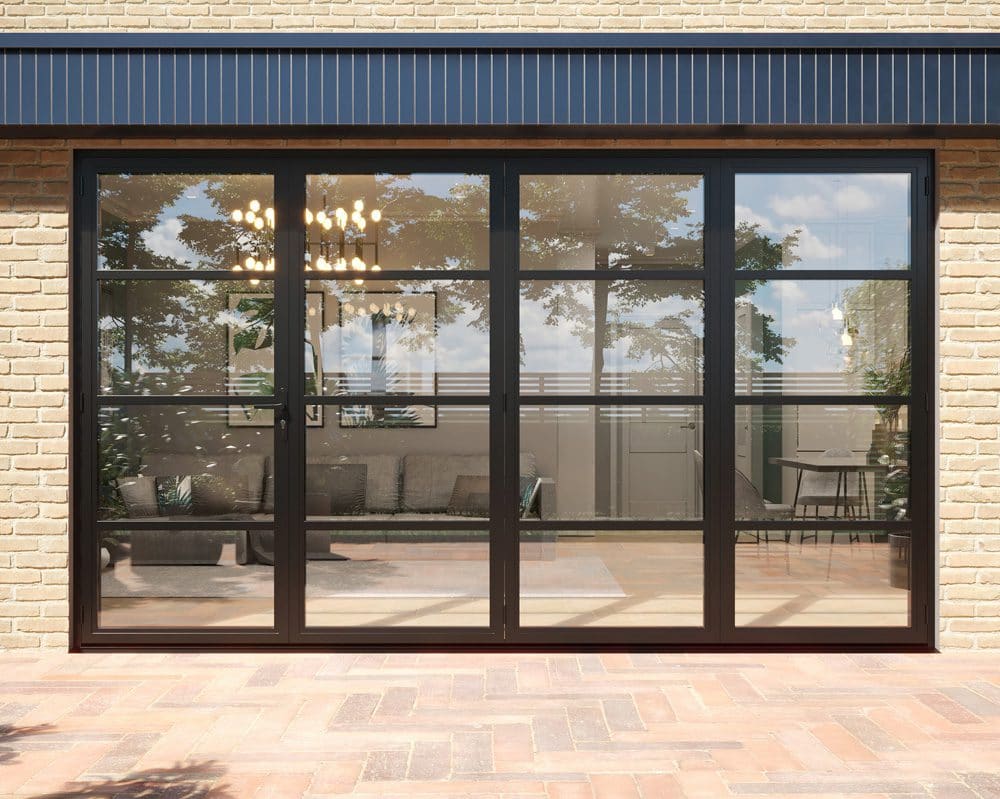

Our Revere Industrial bifolds combine the iconic feel of heritage style steel doors with the attainability of aluminium. Black powder coated aluminium framing makes for a lightweight and more cost effective alternative to steel, while 40mm glazing bars on the surface of the glass help complete the sleek industrial design.
Stepped edging on the face of each door panel adds to the timeless deco styling of these highly popular industrial doors. An overall U-Value of 1.4 W/m2k means these doors fully comply with British building regulations, keeping your home warm and energy bills down.
This 3.6m set is made up of 4 doors. The handled panel can be used on its own for day to day access without having to fully open the entire set, making it ideal for using as a regular back door.
Please note the glazing for this set is supplied unfitted to allow easy installation of the framework. This is then fitted during the assembly process.
At least two able-bodied people must be available on site to assist the driver at the point of delivery in order to safely offload the product.
These are made to order items, and so orders for these products cannot be cancelled or returned.
Technical Information
Key Details
Product Code
REVINDBI360031
Configuration
3+1
Opening Direction
Left or Right
Daily Access Door
Yes
Measurements
Outer Frame (w x h)
3590 x 2090mm
Required Opening (w x h)
3600 x 2100mm
Door Thickness
72mm
Sightlines
138mm
Cill Depth
175mm
Cill Backstop Height
53mm
Materials
Construction
Aluminium with Thermal Break
Finish
Jet Black - RAL 9005
Aluminium Profiles
Multi-chamber thermally broken aluminium for optimum insulation
Glazing
28mm Toughened Low E Double Glazed Unit
Hardware
Black handles, hinges and rollers
Hanging Type
Bottom Hung
Supplied As
Kit Form
Performance & Guarantees
Centre Pane U-Value
1.0 W/m2k
Overall U-Value
1.4 W/m2k
Security Features
High Security Hardware & PAS24 Multi-Point Locking System as Standard
Compliances
This Product is Fully Compliant with British Building Regulations, Including Part J and Part L
Guarantee
25 Years for Aluminium Profiles, 10 Years for Hardware & Glazing
Black
Black
Aluminium
1.4 U-Value
25 Year Guarantee
