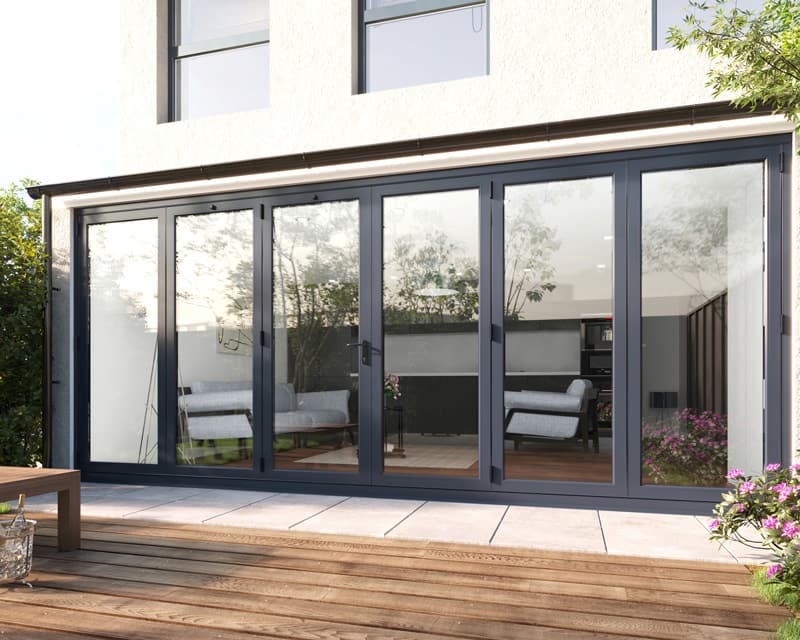

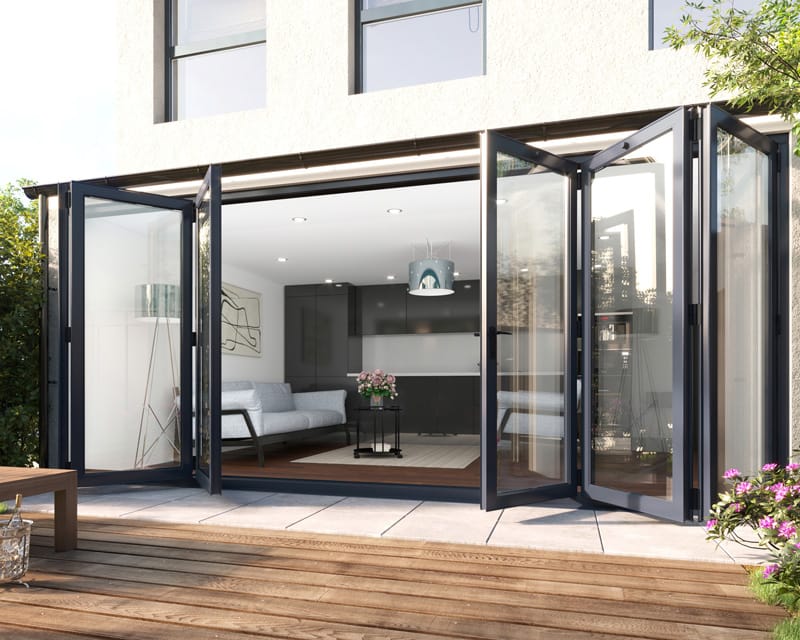

Revere Grey 4800mm 3+3

Product Code: REVGRYBI480033

Size (W x H): 4790 x 2090mm

£4,383.00

inc. VAT + delivery

Delivery in 3 weeks
Made to order

Tech Info
Measurements

Grey
Aluminium
1.4 U-Value
25 Year Guarantee

Change Aperture Width

Aperture width: 4800mm (3+3)

£4,383.00 Price includes VAT and delivery!Delivery within 3 weeksMade to order

Reviews

Product Information

Grey aluminium bifolds are the current must-have feature piece for any project, from large developments through to small scale renovations. Sleek matt-grey lines compliment traditional properties as well as more contemporary builds, bringing a touch of subtle class to your home. The 72mm aluminium surrounds for each door offer superb structural strength without the same weight as timber sets, while the thermal break and double glazed units ensure these doors surpass the thermal efficiency benchmarks set by British building regulations.

Fully finished with an Anthracite Grey RAL 7016M powder coating system, these aluminium bifolds will last and last without the need for regular finish maintenance, keeping your home effortlessly stylish.

Please note the glazing for this set is supplied unfitted to allow easy installation of the framework. This is then fitted during the assembly process.

If being installed within 2 miles of salt water, this set will require a marine grade coating. If this applies to your property, please contact us for a quote.

At least two able-bodied people must be available on site to assist the driver at the point of delivery in order to safely offload the product.

Technical Information

Product Code REVGRYBI480033

Configuration 3+3

Opening Direction Left or Right - Dependent on choice

Daily Access Door Yes

Outer Frame (w x h) 4790 x 2090mm

Required Opening (w x h) 4800 x 2100mm

Door Thickness 72mm

Sightlines 138mm

Cill Depth 175mm

Cill Backstop Height 53mm

Construction Aluminium with Thermal Break

Finish Anthracite Grey - RAL 7016M

Aluminium Profiles Multi-chamber thermally broken aluminium for optimum insulation

Glazing 28mm Toughened Low E Double Glazed Unit

Hardware Black handles, hinges and rollers

Hanging Type Bottom Hung

Supplied As Kit Form

Centre Pane U-Value 1.0 W/m2k

Overall U-Value 1.4 W/m2k

Security Features High Security Hardware & Multi-Point Locking System as Standard

Compliances This Product is Fully Compliant with British Building Regulations, Including Part J and Part L

Guarantee 25 Years for Aluminium Profiles, 10 Years for Hardware & Glazing
